Different diameter double-row ball four point contact slewing bearing (internal gear type)

Back

Request a Quote Consultation

Model

SNIR25/500Y

SNIR25/500

SNIR25/560Y

SNIR25/560

SNIR25/630Y

SNIR25/630

SNIR25/710Y

SNIR25/710

SNIR30/800Y

SNIR30/800

SNIR15/748

SNIR30/900Y

SNIR30/900

SNIR20/895

SNIR30/1000Y

SNIR30/1000

SNIR30/1120Y

SNIR30/1120

SNIR20/1085

SNIR40/1250

SNIR40/1250Y

SNIR40/1400Y

SNIR40/1400

SNIR30/1381

SNIR25/1360

SNIR20/1360

SNIR40/1600

SNIR40/1600Y

SNIR25/1600

SNIR30/1630

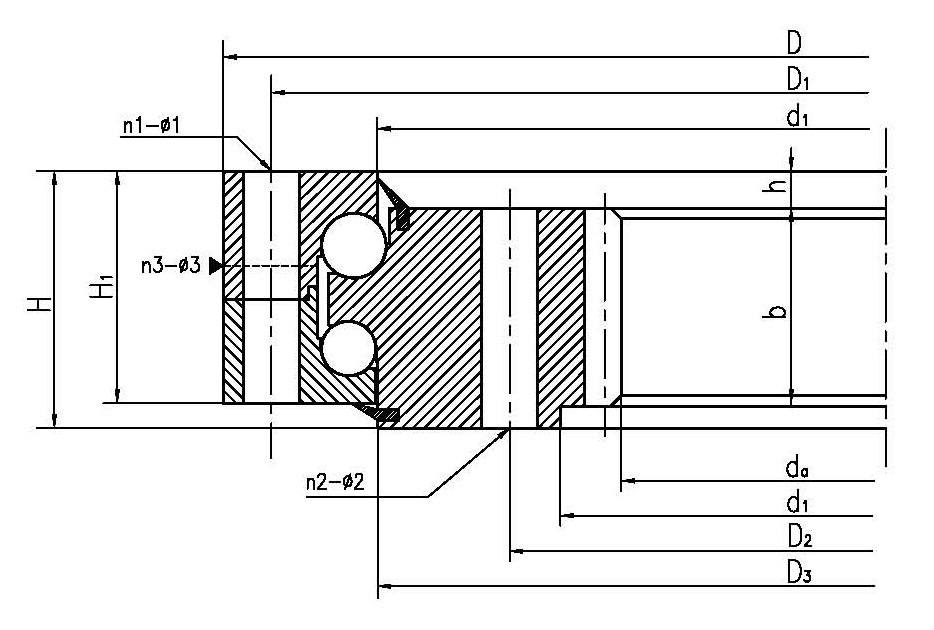

LYC Model	TG Model	Boundary dimensions (mm)				Bolt hole diameter (mm)						Structure dimensions (mm)								Gear Parameters (mm)				Basic load ratinge Coa (KN)	Weight (KG)
LYC Model	TG Model	Da	D	di	H	La	Li	n1	n2	φ1	φ2	D1	d	b	h	B	C	Di	da	m	z	do	x	Basic load ratinge Coa (KN)	Weight (KG)
024.25.500.**		348	616	384	106	580	420	20	20	18	18			60	10	80	96	477	483	6	59	354	+0.5	1210	100
023.25.500.**		355	616	384	106	580	420	20	20	18	18			60	10	80	96	517	523	5	72	360	+0.5	1210	100
024.25.560.**		408	676	444	106	640	480	20	21	18	18			60	10	80	96	537	543	6	69	414	+0.5	1340	115
023.25.560.**		415	676	444	106	640	480	20	20	18	18			60	10	80	96	577	583	5	84	420	+0.5	1340	115
024.25.630.**		472	746	514	106	710	550	24	24	18	18			60	10	80	96	607	613	8	60	480	+0.5	1530	130
023.25.630.**		480	746	514	106	710	550	24	24	18	18			60	10	80	96	647	653	6	81	486	+0.5	1530	130
024.25.710.**		552	826	594	106	790	630	24	24	18	18			60	10	80	96	687	693	8	70	560	+0.5	1730	140
023.25.710.**		558	826	594	106	790	630	24	24	18	18			60	10	80	96	727	733	6	94	564	+0.5	1730	140
024.30.800.**		610	942	658	124	898	702	30	30	22	22			80	10	95	114	771	778	10	62	620	+0.5	2300	200
023.30.800.**		616	942	658	124	898	702	30	30	22	22			80	10	95	114	822	828	8	78	624	+0.5	2300	200
		648	823	678	77	798	705	24	24	17.5	M16			45	3	54	74	710	734	6	110	660		1800	90
024.30.900.**		710	1042	758	124	998	802	30	30	22	22			80	10	95	114	871	878	10	72	720	+0.5	2580	250
023.30.900.**		712	1042	758	124	998	802	30	30	22	22			80	10	95	114	922	928	8	90	720	+0.5	2580	250
		784	971	820	82	944	850	30	30	17.5	M16			50	4	58	78	854	879	8	100	800		2300	118
024.30.1000.**		792	1142	858	124	1098	902	36	36	22	22			80	10	95	114	971	978	12	67	804	+0.5	2860	300
023.30.1000.**		810	1142	858	124	1098	902	36	36	22	22			80	10	95	114	1022	1028	10	82	820	+0.5	2860	300
024.30.1120.**		912	1262	978	124	1218	1022	36	36	22	22			80	10	95	114	1091	1098	12	77	924	+0.5	3210	340
023.30.1120.**		920	1262	978	124	1218	1022	36	36	22	22			80	10	95	114	1142	1148	10	93	930	+0.5	3210	340
		960	1161	1010	90	1131	1040	36	36	17.5	M16			55	12	66	78	1044	1069	10	98	980		2850	154
023.40.1250.**		1008	1426	1074	160	1374	1126	40	40	26	26			90	10	121	150	1282	1286	12	85	1020	+0.5	4820	580
024.40.1250.**		1008	1426	1074	160	1374	1126	40	40	26	26			90	10	121	150	1214	1218	14	73	1022	+0.5	4820	580
024.40.1400.**		1148	1576	1224	160	1524	1272	40	40	26	26			90	10	121	150	1364	1368	14	83	1162	+0.5	5430	650
023.40.1400.**		1152	1576	1224	160	1524	1272	40	40	26	26			90	10	121	150	1432	1436	12	97	1164	+0.5	5430	650
		1164	1500		120	1455	1275	36	36	26	26			91	6	91	114	1352	1358	12	98	1176	-0.5	5000	474
		1180	1460		102	1425	1270	36	36	22	22			76	6	76	96	1337	1342	10	119	1190	-0.5	4200	336
		1210	1440		82	1410	1300	54	54	17.5	M16			58	4	58	78	1319	1342	10	122	1220	-0.5	3700	213
023.40.1600.**		1344	1776	1424	160	1724	1476	45	45	26	26			90	10	121	150	1632	1636	14	97	1358	+0.5	6200	750
024.40.1600.**		1344	1776	1424	160	1724	1476	45	45	26	26			90	10	121	150	1564	1568	16	85	1360	+0.5	6200	750
		1404	1700		102	1665	1510	42	42	22	22			76	6	76	96	1577	1582	12	118	1416	-0.5	5000	405
		1416	1750		120	1705	1525	40	40	26	26			91	6	91	114	1602	1610	12	119	1428	-0.5	6000	558
